OBDSTAR DC706 ECU Tool Full Version for Car and Motorcycle ECM & TCM & BODY Clone by OBD or BENCH

Product Description

OBDSTAR DC706 ECU Tool Full Version for Car and Motorcycle ECM & TCM & BODY Clone by OBD or BENCH

1. Full Configuration ECU clone (Car/Motorcycle) + TCM clone + Body/Other clone.

2. Supports OBD, Bench, and Boot mode.

3. One Year Update for Free.

OBDSTAR DC706 ECU Tool Full Version for Car and Motorcycle ECM & TCM & BODY Clone by OBD or BENCH

OBDSTAR DC706 ECU tool, with 1-year free upgrade, is designed for vehicle ECM, TCM, and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU (Virgin), calibrate mileage, read IMMO pincode, ECU recovery, and more. It is all performed by OBD or bench mode and makes ECU cloning easy.

OBDSTAR DC706 Full Version Advanced Functions:

1. R/W eeprom/dflash/pflash/Map, reset ECU (Virgin), calibrate mileage, read IMMO pincode, ECU recovery, and more.

2. Support 710+ ECM types (Partial functions require P003 adapter).

3. Support 210+ TCM types.

4. Support 120+ body/other ECU types (AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess (RFHUB/RFHM), KVM, RFA, SAM, etc.).

5. Support VW DQXXX (TCM) calibrate mileage.

6. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone.

7. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter).

8. Support Piaggio series engine ECU clone (such as MIU G4 (M4G1)).

9. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type.

10. Support automatic identification.

11. Strong help data files.

12. All by OBD or Bench mode.

13. One Year Free Update Online. After one year, the update is $249. Enjoy 40% off when you purchase the upgrade before expiration, only $149.

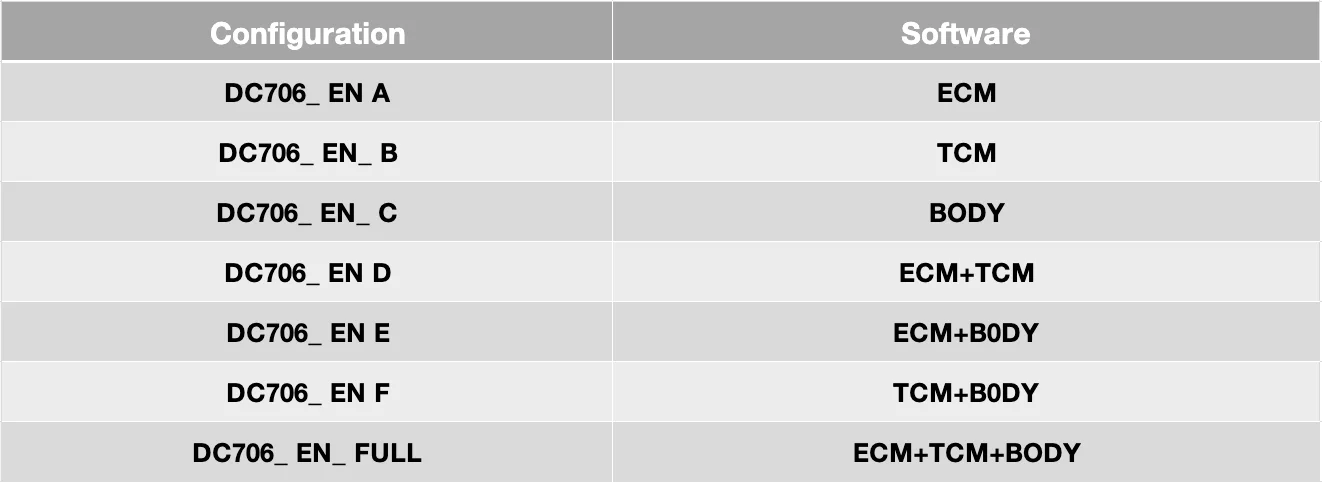

OBDSTAR DC706 Configurations:

Notice:

1. This one is DC706_ EN_ FULL version.

2. Does not clone VAG DQ250 before year 2008.

3. Device comes with English only.

4. OBDSTAR DC706 Distributor code is 0086A002.

5. Please check DC706_ EN_ FULL version Coverage.

6. DC706 User Manual.

Bundle Package & Other Optional Accessories:

Bundle Package & Other Optional Accessories:

OBDSTAR DC706 Full + OBDSTAR P003+ KIT supports reading and writing ECU eeprom & flash data and calculating IMMO data of BOSCH ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for VW/Skoda/Audi/Seat, Bentley, Peugeot/Citroen/DS, Lamborghini, Porsche, Mahindra, etc. (ME9.0, MED9.1, MED9.6.1, ME9.6.1, MED9.5.10, EDC16C39, EDC16CP35, EDC16C8).

OBDSTAR MP001 Set is compatible with P003+ and has more SIMOS 18 than P003+ (because the boot mode of SIMOS 18 is very special and needs more IO ports to be supported; P003+ has 4 IO ports and cannot support it), and since MP001 has up to 12 IO ports, it can meet all future ECM requirements.

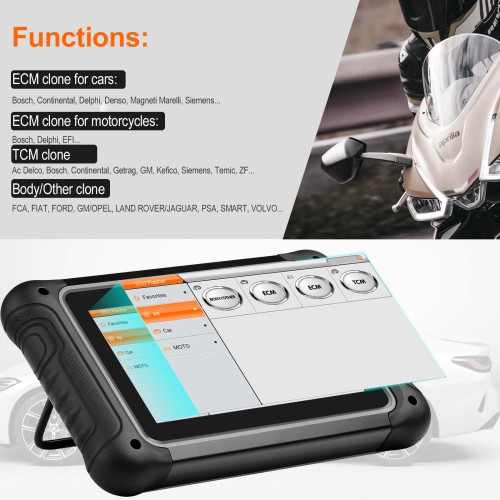

OBDSTAR DC706 ECU Tool Function:

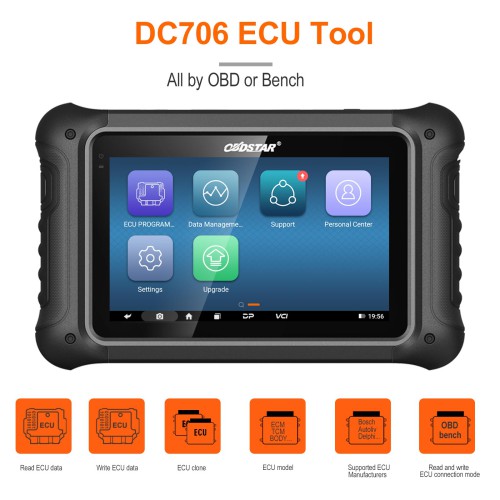

ECU Clone / All by OBD or Bench

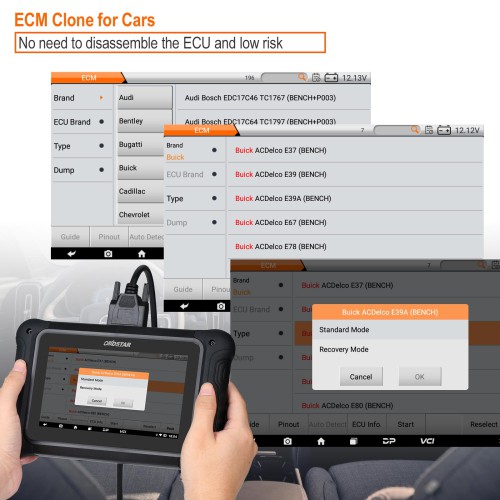

ECM clone for cars (Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)

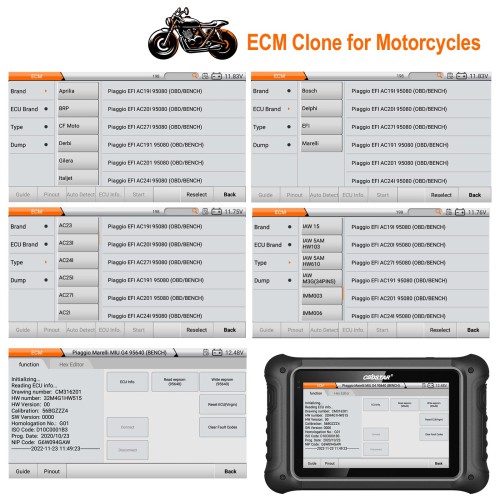

ECM clone for motorcycles (Bosch, Delphi, EFI...)

TCM clone (AC Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)

Body/Other clone (FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)

Supported ECU Manufacturers:

ALPS, Autoliv, Bosch, Continental, Delphi, Denso, Johnson Controls, Lear, Magneti Marelli, Siemens, Temic, Valeo.

Supported Brands:

Car: ASTON MARTIN, BMW, FAW, FCA (ALFA ROMEO, CHRYSLER, DODGE, FIAT...), FORD/LINCOLN, GM/OPEL, HYUNDAI/KIA, LAND ROVER/JAGUAR, LUXGEN, MASERATI, MAZDA, MITSUBISHI, NISSAN, OPEL, PSA, SMART, SUBARU, SUZUKI, VOLVO, VW/AUDI/SEAT/SKODA.

Motorcycle: APRILIA, BRP, CFMOTO, DERBI, GILERA, GUZZI, PEUGEOT, PIAGGIO, QJBENELLI, VESPA.

OBDSTAR DC706 ECU Tool Latest Update Information:

MOTORCYCLE ECU FLASHER UPGRADE [V30.04]

ROYAL ENFIELD BOSCH ME17.9.71 TC1724N (BENCH+P003)

CFMOTO BOSCH ME17U6 TC1728 (BENCH+P003)

KTM BOSCH ME17.9.21.1 TC1724N (BENCH+P003)

OBDSTAR DC706 ECU Tool Function Display:

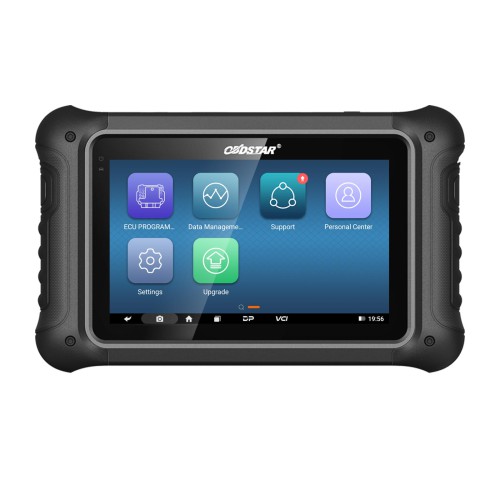

1. Main Page/Brand Supported

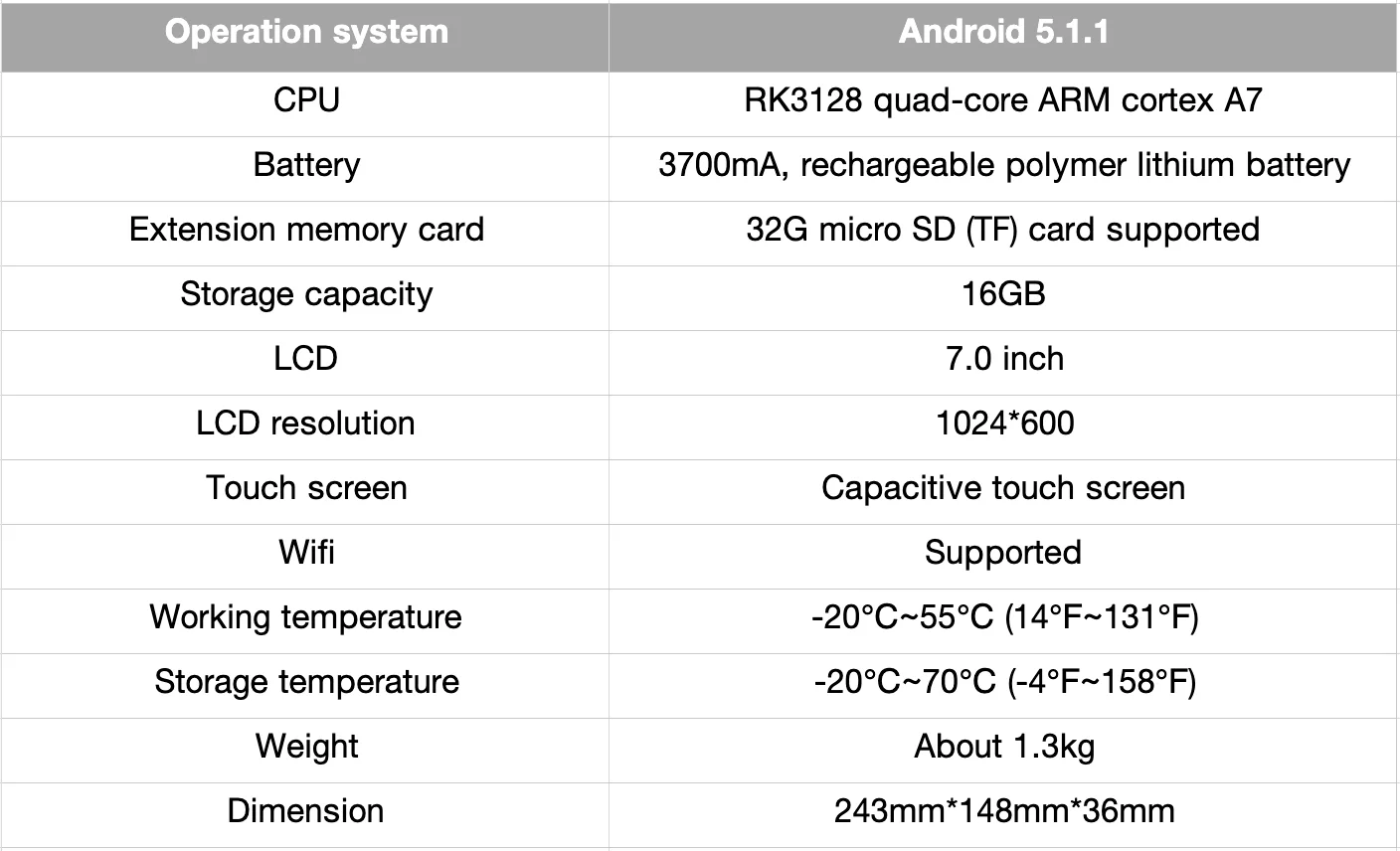

Product Specifications:

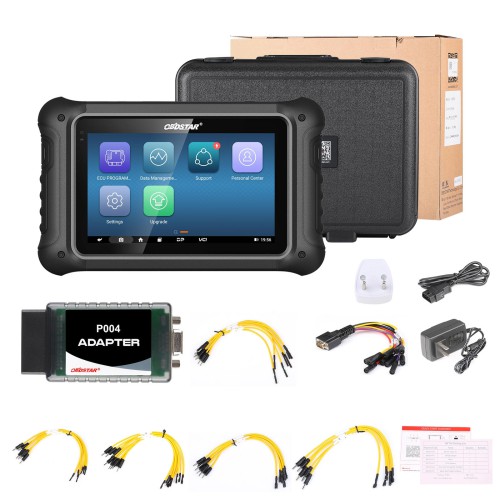

Package Includes:

1pc × DC706 Main Unit

1pc × Main Cable

1pc × P004 Adapter

1pc × P004 ECU Clone Jumper

1pc × 12V2A Charger
