ECU GPT Boot AD ECU Connector for ECU Reading Writing No Need Disassembly Compatible J2534/ Openport/ PCMFlash/ foxFlash/CG FC200

GODIAG ECU GPT Boot AD programming adapter can help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GPT Bench method, or by disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFlash software.

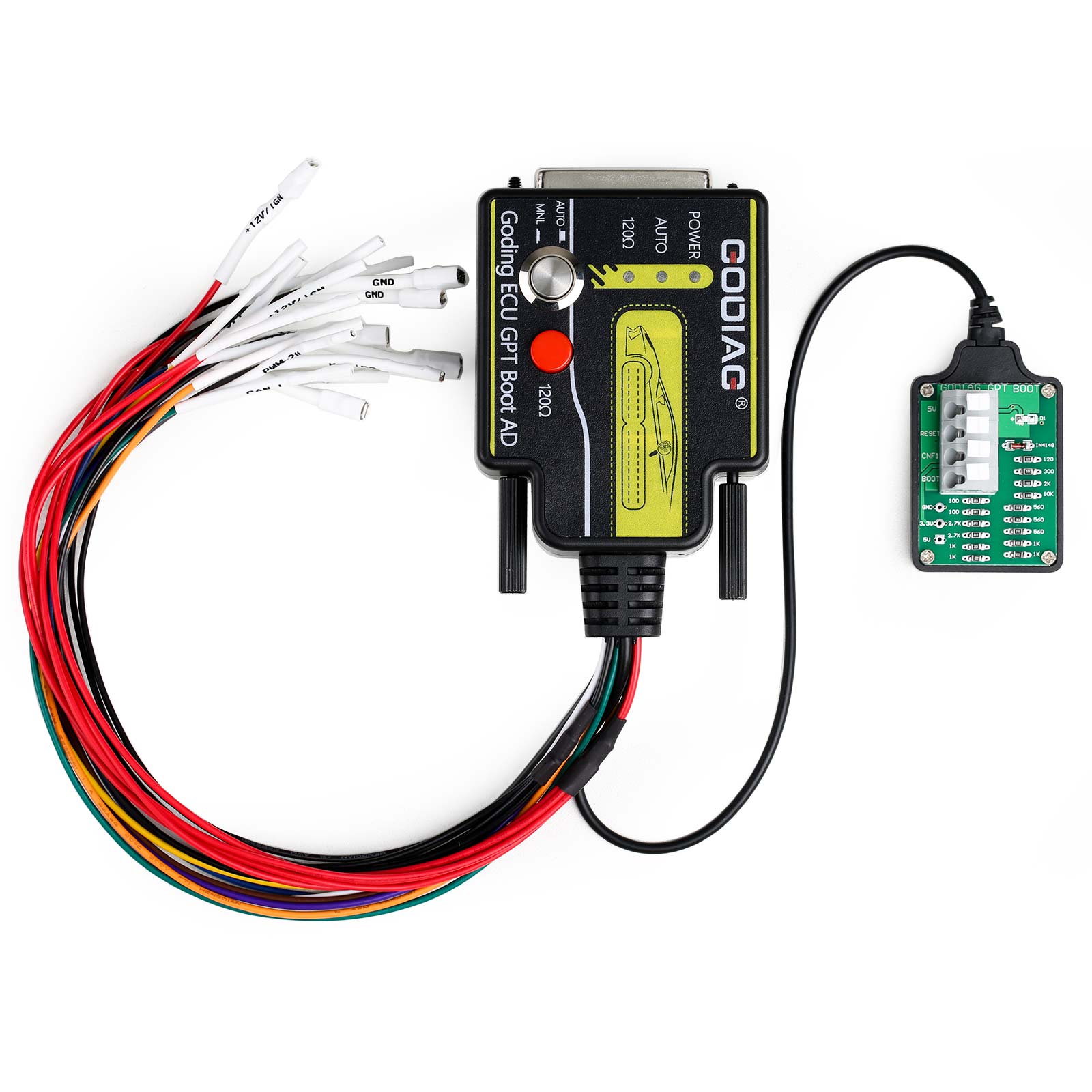

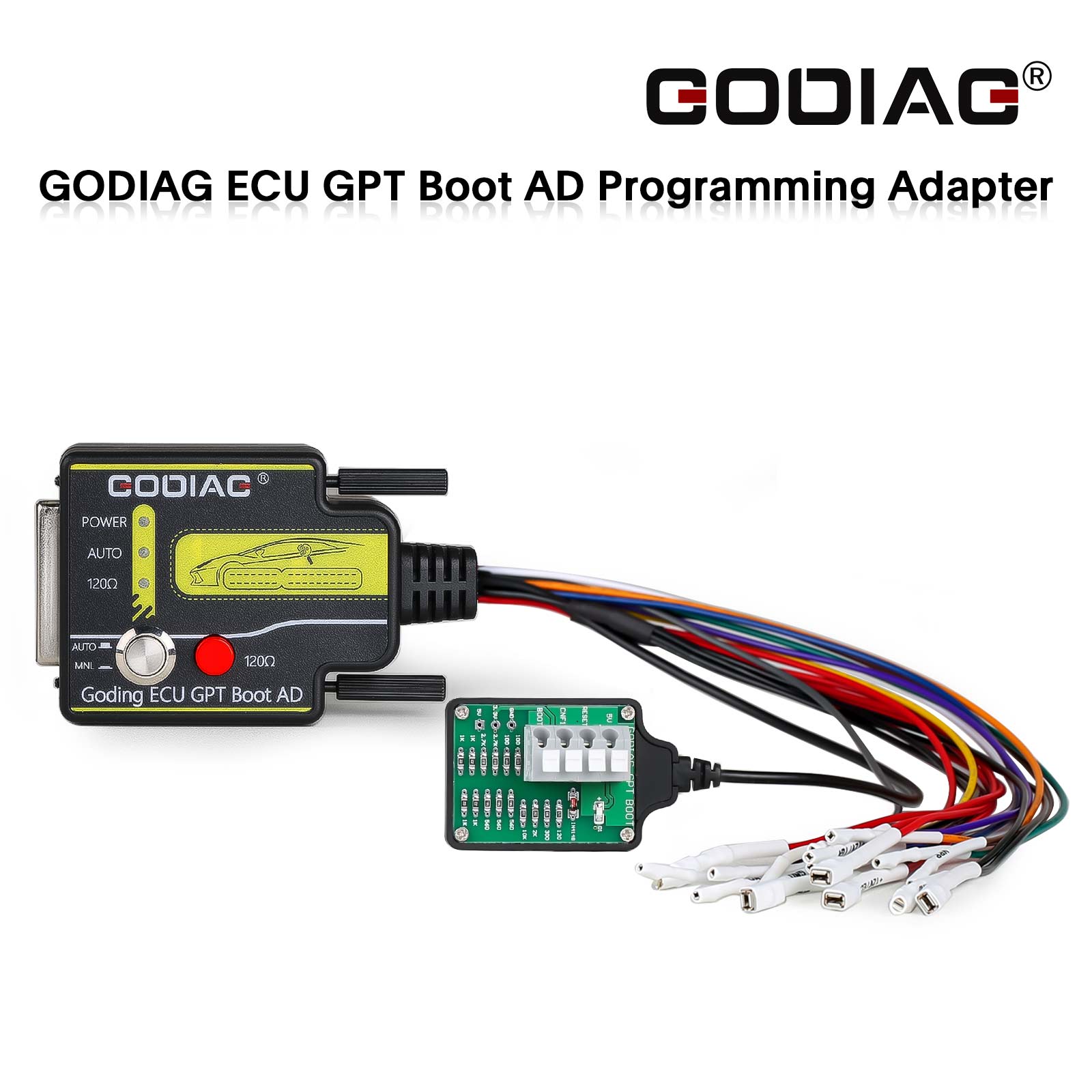

GODIAG ECU GPT Boot AD ECU Connector Description:

GODIAG ECU GPT Boot AD programming adapter can help customers read and write ECU data without disassembling the ECU using the OBD2 Bench or GPT Bench method, or by disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. Customers can use it with J2534 devices and PCMFlash software

 GODIAG ECU GPT Boot AD ECU Connector Features:

1. Support GPT to read and write data without disassembling the ECU.

2. Support ECU opening BOOT method to read and write data.

3. Support ECU conversion to OBD2 mode to read and write data.

4. Equipped with BOOT resistance board connecting cable [anti-lost resistor design].

5. Support RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.

6. Support PCMFlash automatic control of ignition power supply.

7. Support manual ignition power control.

8. CANbus is equipped with a switch to freely select the 120Ω resistor.

9. ECU dedicated connection terminal.

10. The ECU interface cable is labeled.

Notice: GODIAG ECU GPT Boot AD cannot be used alone and needs to be used with ECU tools.

GODIAG ECU GPT Boot AD ECU Connector Functions:

1. Diagnostic function supports standard OBD2 protocol equipment.

2. Supports ECU reading and writing data, and supports J2534 devices.

3. Only Scanmatik 2 PRO for PCMFlash allows to form GPT1, GPT2 signals necessary to work with Module 71.

4. Other devices — Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR, Teradyne GNA600 (VCM 1), Mazda VCM 2 — support OBD2 or BOOT mode to read and write ECU data.

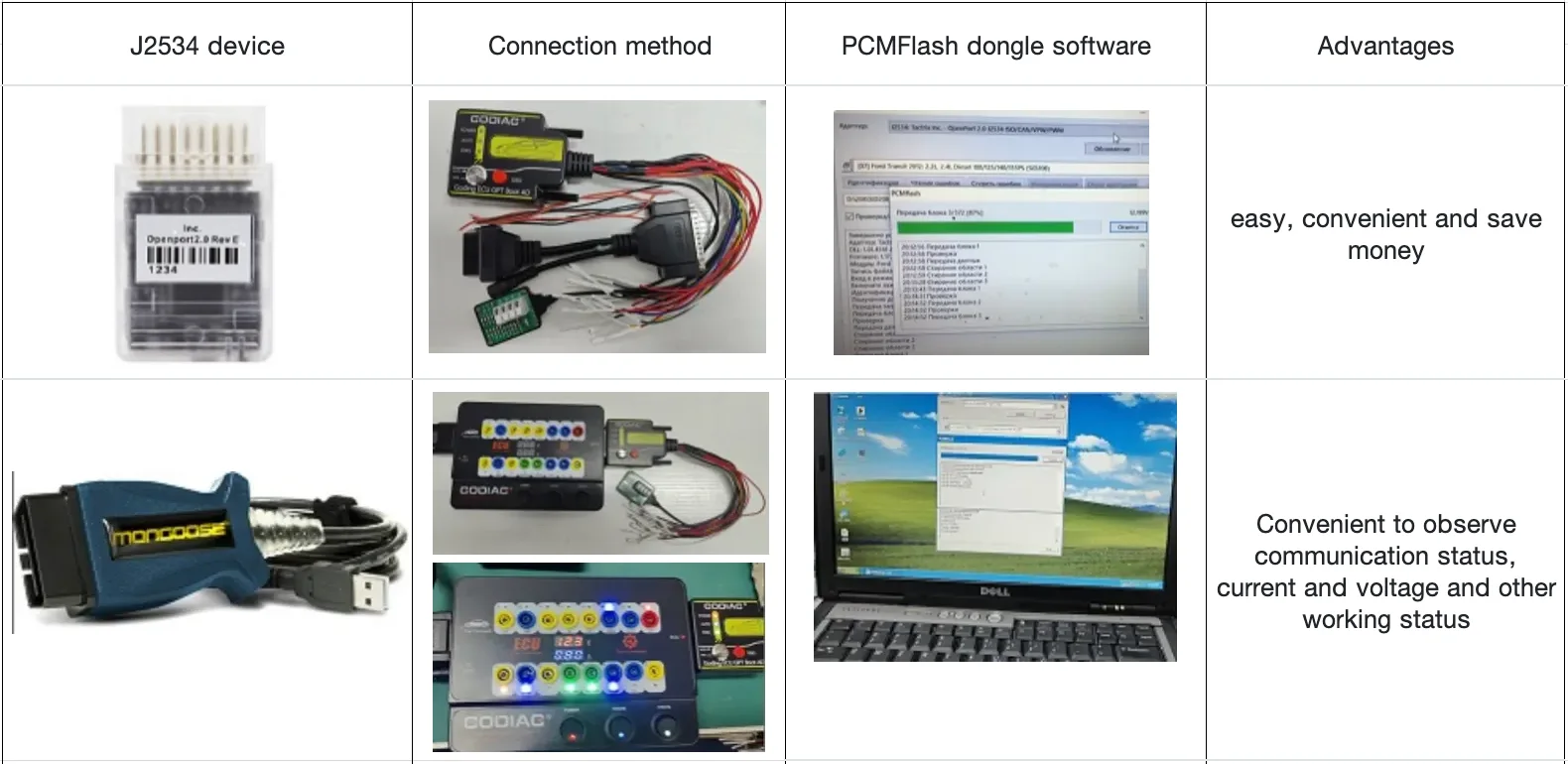

Connection Method of GODIAG ECU GPT Boot AD programming adapter, J2534 device and PCMFlash dongle software:

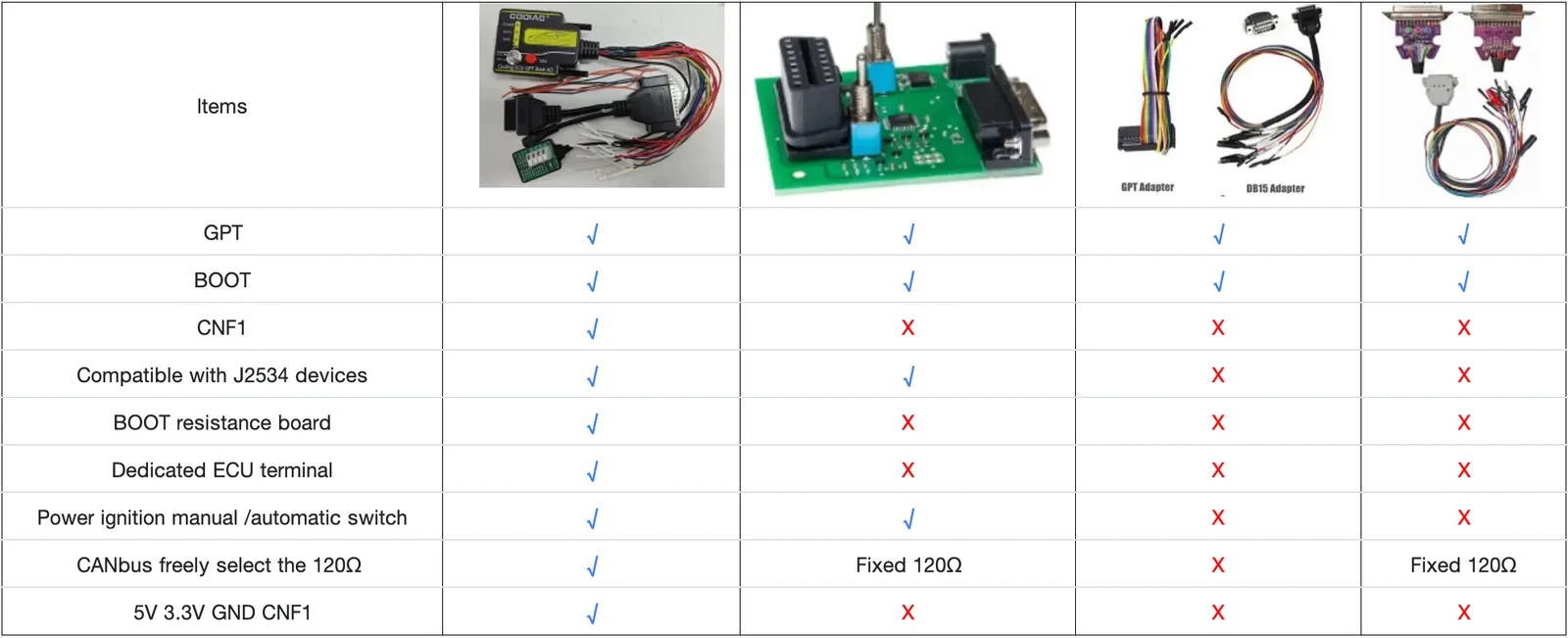

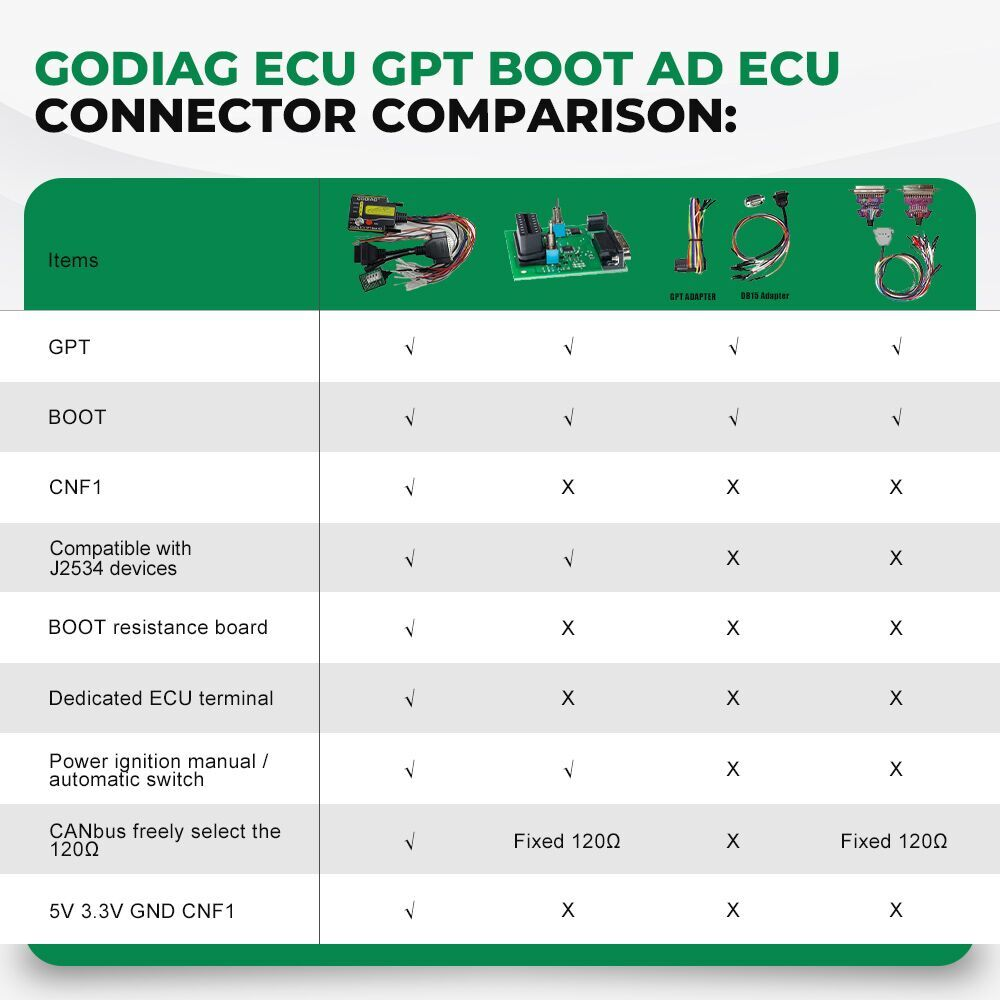

GODIAG ECU GPT Boot AD ECU Connector Comparison:

Connection:

Use GODIAG ECU GPT Boot AD with GODIAG GT100 and FC-200 to Read BMW EDC17CP02 ECU

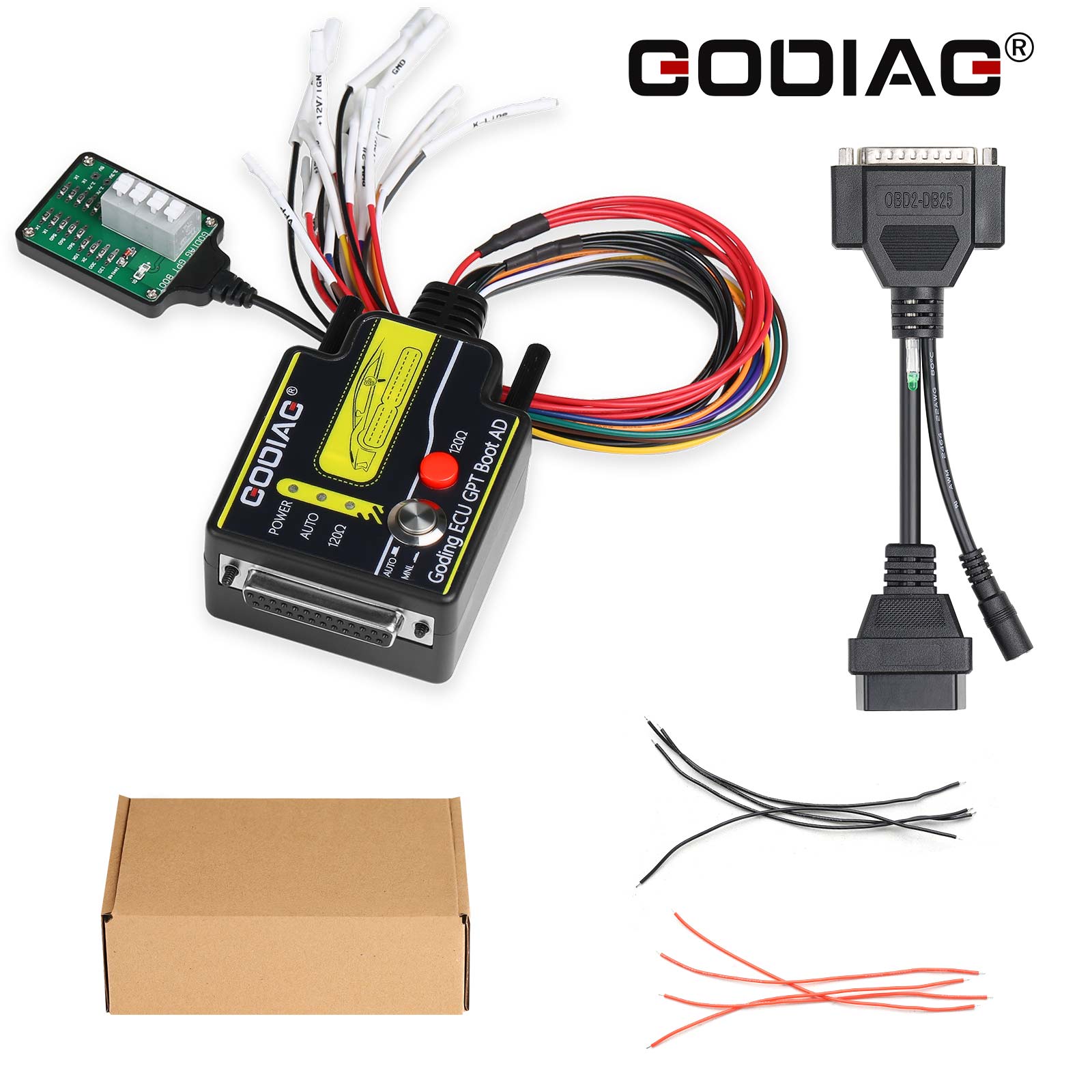

Package Includes:

1pc x GODIAG ECU GPT Boot AD Programming Adapter

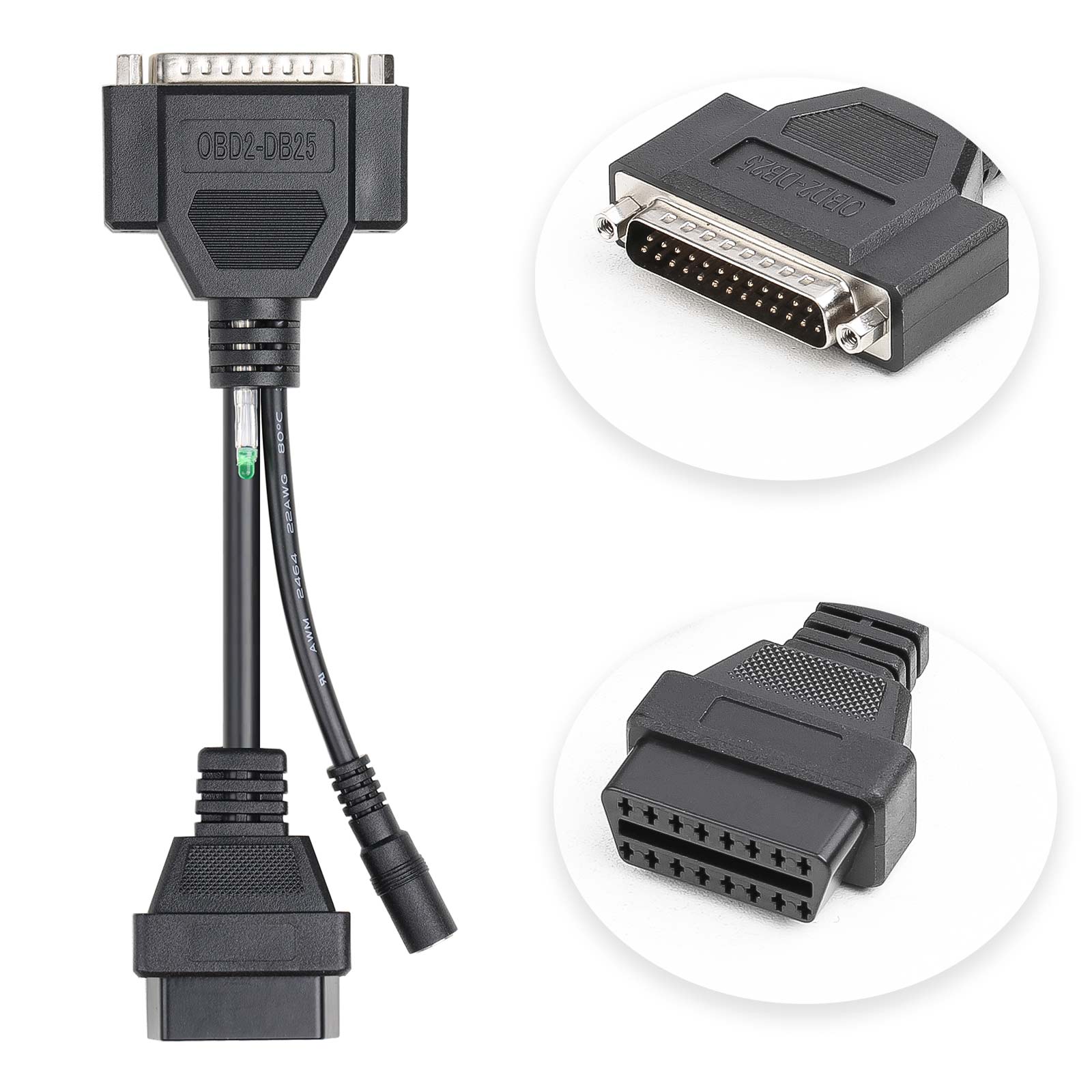

1pc x OBD2 to DB25 Cable

8pcs x Soft Silicone Wires
